Product Name：Tuning Fork (206 308)
- Product Category：
- Product Details：
Features:
． High stability assured with tight vacuum sealing
． High vibration and shock resistance
． Frequency: 32.768 KHz - E-MAIL:
-
Specification:
| Model | JU206 JU308 |
| Frequency | 32.768 KHz |
| Frequency Tolerance at 25°C±2°C | ±20 ~ ±50ppm |
| Operating Temp Range | -10°C ~+60°C,-20°C~+70°C |
| Temperature Coefficient(Frequency) | -0.04 ppm ± 0.006 ppm/°C2(TYP.) |
| Load Capacitance | 12.5 pF |
| Drivel Level | 1uW~10uW |
| Resonance Resistance | 35 KΩ (AT206) 55 KΩ (AT306) |
| Shunt Capacitance | 5 pf Max |
| Oscillation Mode | Fundamental |
| Soldering Condition | Under 235°C with 5sec (Do not heat the package to more than 150°C) |

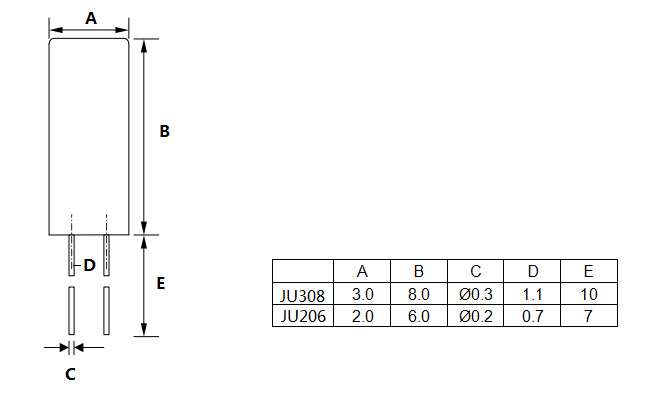

Dimensions:
Contact Realgiant
Beijing Realgiant Technology Development Co., Ltd.
Tel: +86-10-64156778
Fax: +86-10-64156778
Email: sales@crystal-bj.com
Add: No. 9# Chaowai North Street,Chaoyang District, BEIJING
