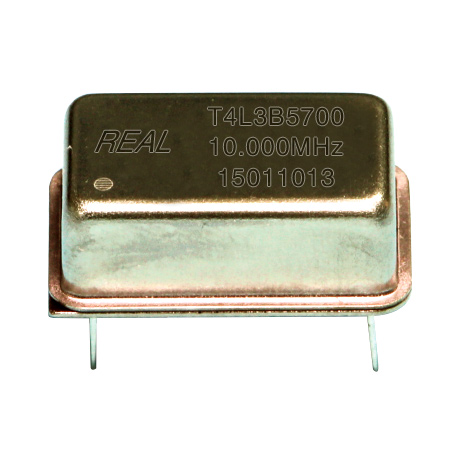

Product Name:TCXO DIP14

  • Product Category:
    • Product Details:
      Features:
      . Low Power Consumption
      . High Stability
      . Mass production with good uniformity
      . ISO9001:2008 & ISO 14001:2004 certificated
      . ROHS compliant
      . Custom build capability
    • E-MAIL:

    Specification:

    Spurious   70   dBc
    Phase Noise
    Phase Noise   -85   dBc/Hz @10Hz For 10.000MHz operational frequency
      -110   @100Hz
      -130   @1kHz
      -145   @10KHz
      -145   @100KHz
      -148   @1MHz
    Voltage Control Characteristics
    Control Voltage Range 0 1.65 3.3 V
    0 2.5 5
    Frequency tuning range -9   -15 ppm Vc=0V For 10.000MHz operational frequency
    -1   +1 ppm Vc=1.65V
    +9   +15 ppm Vc=3.3V
    Slope Positive
    Linearity -10   +10 %
    Input Impedance 100
    Mechanical specification & Package

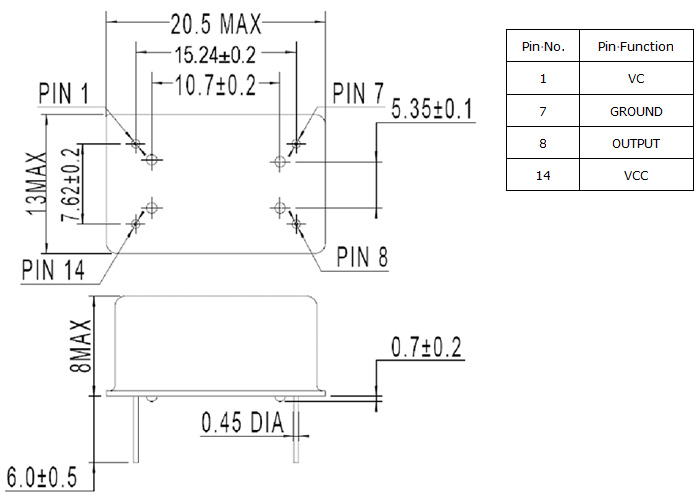

    Package Size Refer to the below drawing
    Pin Connector Size
    Pin Connector Definition
    ROHS RoHS compliant(network exempted)



    Environmental, Mechanical Conditions
    Operating temp  range -40℃~+85℃
    Operable temp  range -40℃~+85℃
    Storage temp  range -50℃~+105℃
    Drop Test The test shall be carried out as the provisions of the IEC60028-2-32 test Ed. 10cm height, 3 times on hard board with thickness of 3cm
    Bumping Test Device are bumped to three mutually perpendicular axes at peak acceleration of 400m/s², each 4000±10 times , 6ms pulse duration time.
    Vibration test Frequency range: 1Hz-4Hz-100Hz-200Hz Acceleration: 0.0001g²/Hz-0.01g²/Hz-0.01g²/Hz-0.001g²/Hz Grms=1.15g Sweep time: 30 minutes (perpendicular axes each sweep time)
    Mechanical Shock 100g, 6mS duration, 1/2 sine wave, 3 shocks each direction along 3 mutually perpendicular planes.
    Thermal shock 0.5h@-40℃,0.5h@+85℃,Note: the changing time < 30 seconds, cycling for 100 times
