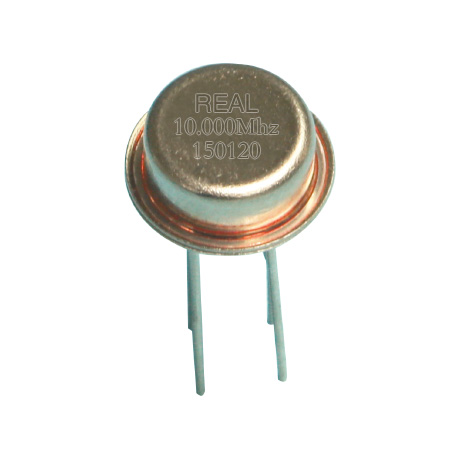

Product Name:TO5 Series Crystal Resonator

  • Product Category:
    • Product Details:
      Features:
      . Excellent aging performance.
      . Mass production capability.
      . High reliability design
      . RoHS Compliant / Pb Free
      . Customized as request
    • E-MAIL:

    Specification:

    Item symbol Specification
    Min. Max. Unit
    Material - Quartz / Gold -
    Frequency F0 10~200 MHz
    Holder - TO5(Cold press welding) -
    Cut / Overtone - SC/ 3 & 5 & 7 -
    Blank Surface Finish - Polished(>3μm per side) -
    Insulation Resistance - 500    MΩ
    Turnover point TP1 60 120 °C
    Turnover point deviation   ±(1~10) °C
    Frequency Tolerance - ±(0.5~3) ppm
    Dynamic capacitance C1 0.1 10 fF
    Static capacitance C0 2 6 pF
    Serial  resistance R1  10 150 Ω
    Q factor Q 100 1300  K
    Aging in year DF/F ±(0.01~0.2) ppm
    Storage temperature range Tstg  -55 125  °C
    Standard Frequency MHz 10 / 20 / 60 / 80 / 100 / 125

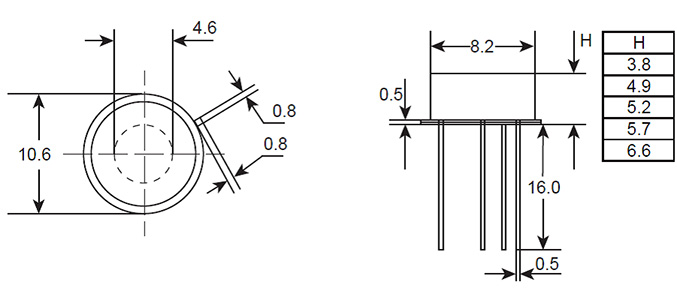

    Dimensions:

    TO5 Series Crystal Resonator
