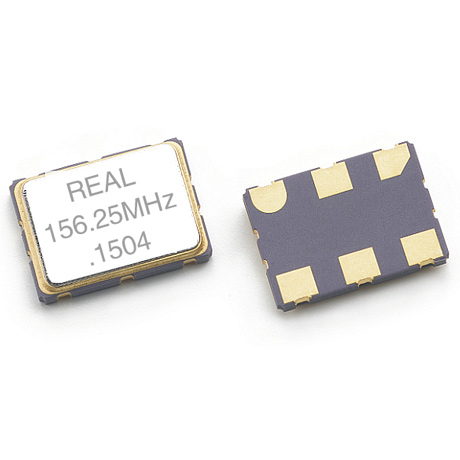

Product Name:VC7050SMD 6PAD

  • Product Category:
    • Product Details:
      Features:
      . Excellent environmental capability
      . Frequency adjustable
      . Supply voltage:3.3V or 5V
      . Low power consumption
      . High accuracy and high reliability
    • E-MAIL:

    Specification:

    Model VC7050 SMD 6PAD
    Frequency Range MHz 1.0 ~ 52.0MHz
    Frequency Stability ppM ±30 ~ ±50 min.(2.5±2.0 V DC)
    Environmental Condition
    Operating Temp Range °C 0 ~ 70
    Storage Temp Range   -40 ~ 85
    Frequency Stability PPM ±10 ~ ±100 max
    Power Supply Voltage V DC 5.0V±10% or 3.3V±10%
    Output Symmetry % 40% ~ 60% or 45% ~ 55%
    Input Current mA max 30 mA max
    Output Load   5TTL or 15 pF
    Rise and Fall Time ns max 5.0 ns max

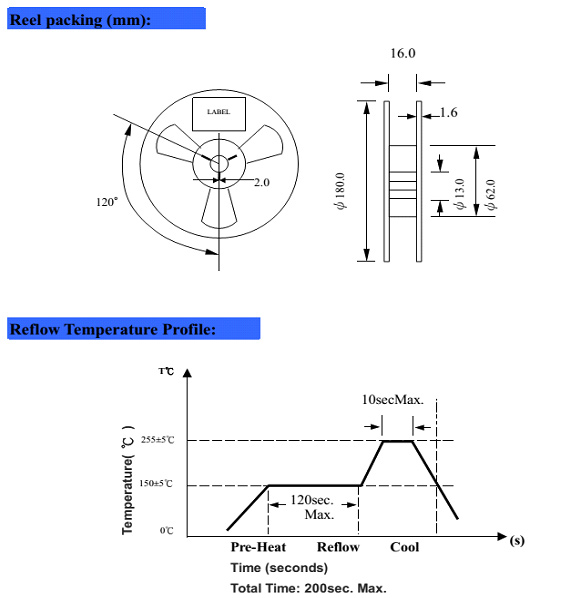

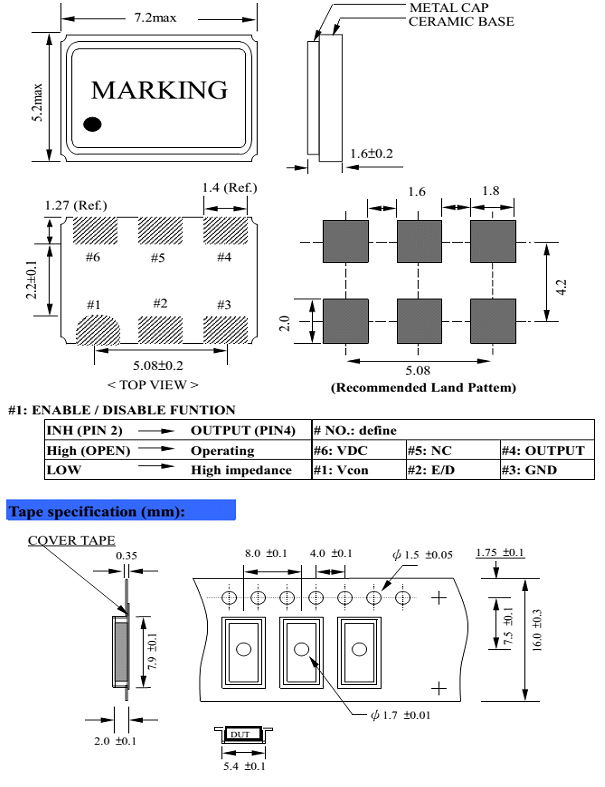

    Dimensions:

    Dimensions

    Dimensions
