Product Name:3225 SMD OSCILLATORS SMD TYPE CERAMIC

  • Product Category:
    • Product Details:
      Features:
      . Seam welding
      . Excellent solderability
      . Automatic and perfect packing due to emboss taping
      . Excellent vibration resistance & shock resistance
      . Rohs compliant / Pb free
    • E-MAIL:

    Specification:

    Model

    3225 SMD

    Frequency Range

    MHz 2.0 ~ 54.000MHz

    Frequency Stability

    ppM A:±100   B: ±50   C:±30    D:±25

    Environmental Condition



    Operating Temp Range

    °C 0 ~ 70 , -40 ~ 85

    Storage Temp Range

      -55 ~ 125

    Output Level

      CMOS

    Output Symmetry

    % 40% ~ 60% or 45% ~ 55%(at 55%V DC)

    Power Supply Voltage

    V DC 5.0V±10% 3.3V±10% 2.8V±10% 2.5V±10% 1.8V±10%

    Input Current



    2.0 ~ 9.99 MHz

    mA 20 7 6 6 5

    10.0 ~ 19.99 MHz

    20 7 8 8 6

    20.0 ~ 31.99 MHz

    25 12 8 8 6

    32.0 ~ 49.99 MHz

    35 20 20 20 15

    50.0 ~ 54.00 MHz

    50 20 20 20 15

    Rise and Fall Time



    2.0 ~ 9.99 MHz

    ns 15 20 5 5 7

    10.0 ~ 19.99 MHz

    15 15 5 5 7

    20.0 ~ 31.99 MHz

    15 10 5 5 6

    32.0 ~ 49.99 MHz

    15 10 5 5 6

    50.0 ~ 54.00 MHz

    10 10 5 5 6

    Output Load



    15pF

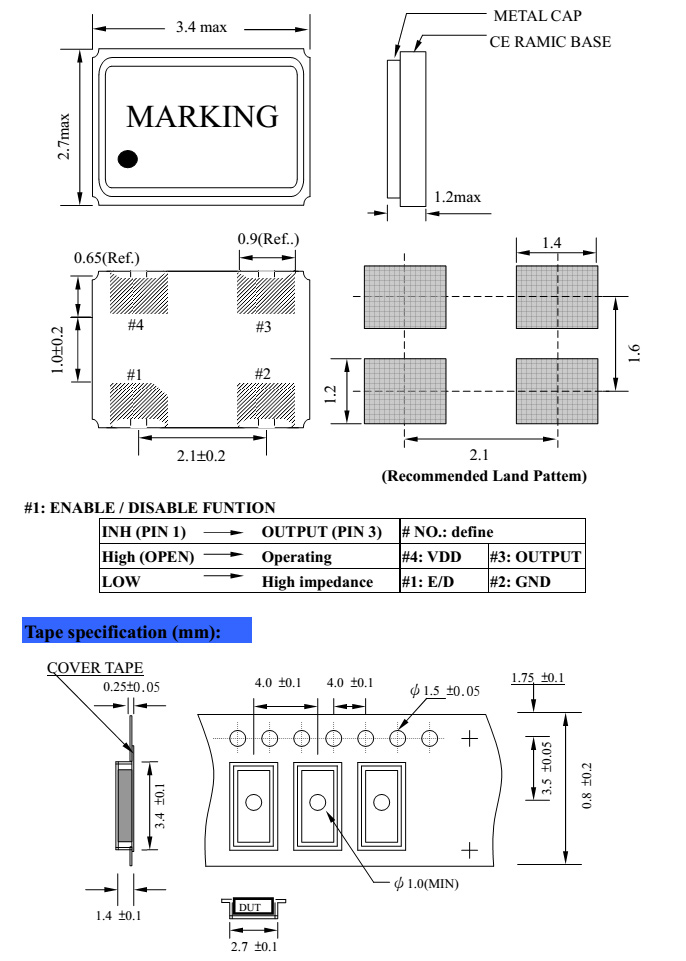

    Dimensions:

    Dimensions

    Dimensions
