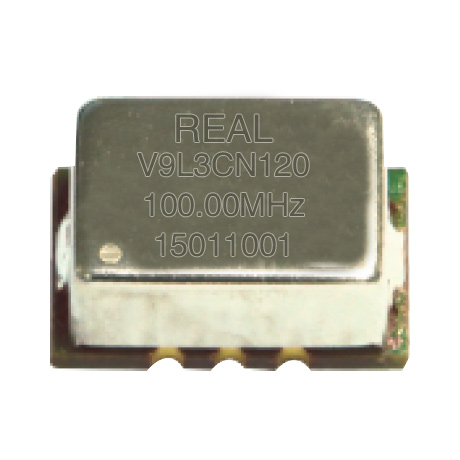

Product Name：VCXO 1409
- Product Category：
- Product Details：
Features:
． Broad Voltage Control Range
． LVPECL、CMOS、HCMOS
． Mass production with well uniformity
． Custom build capability
． ISO9001:2008 & ISO 14001:2004 certificated
． ROHS compliant - E-MAIL:
-
Specification:
| Parameter | Min | Typ. | Max | Unit | Condition | Note | |||
| Frequency Stability | |||||||||
| Frequency | 2.048 | 122.88 | MHz | CMOS/HCMOS | |||||
| 61.44 | 700.0 | MHz | LVPECL | ||||||
| Initial Frequency Accuracy | -10 | +10 | ppm | Vc=Vcc/2@25℃, | |||||
| -15 | +15 | ||||||||
| Supply Variation | -3 | +3 | ppm | Vcc±5%， @25℃ | |||||
| Load Variation | -2 | +2 | ppm | RL±10%， @25℃ | |||||
| Aging | First year | -3 | +3 | ppm | |||||
| Temperature Stability | -25 | +25 | ppm | -40℃～+85@25℃ | |||||
| Start up time | 20 | ms | |||||||
| Supply Voltage/Current | |||||||||
| Voltage Supply | 3.135 | 3.3 | 3.465 | V | CMOS/HCMOS | ||||
| 4.75 | 5 | 5.25 | V | HCMOS | |||||
| Operating Current | 80 | mA | Max | LVPECL | |||||
| 40 | mA | CMOS/HCMOS | |||||||
| 50 | mA | Standard | LVPECL | ||||||
| 20 | mA | CMOS/HCMOS | |||||||
| Output Characteristics | |||||||||
| LVPECL | Load | 50 | Ω | LVPECL | |||||
| 15 | pF | CMOS/HCMOS | |||||||
| Output Level(VOL) |
1.65 | V | LVPECL | ||||||
| Vcc*10% | CMOS/HCMOS | ||||||||
| Output Level(VOH) |
2.2 | V | LVPECL | ||||||
| Vcc*90% | CMOS/HCMOS | ||||||||
| Duty Cycle | 45 | 55 | % | ||||||
| Rise Time/ Fall Timel | 3 | ns | Output Freq＜50MHz | ||||||
| 1 | ns | 50MHz≤Output≤ 320MHz |
|||||||
| 0.5 | ns | Output Freq＞320MHz | |||||||
| Phase Noise | ||||||
|
Phase Noise |
-64 | dBc/Hz | @10Hz | For 100.00MHz operational frequency |
||
| -95 | @100Hz | |||||
| -123 | @1Hz | |||||
| -140 | @10Hz | |||||
| -146 | @100Hz | |||||
| -146 | @1MHz | |||||
| Voltage Control Characteristics | ||||||
| Control Voltage Range | 0 | Vcc/2 | Vcc | V | ||
|
Frequency tuning range |
-90 | ppm | Vc=0V | For 100.00MHz operational frequency |
||
| -10 | +10 | ppm | Vc=Vcc/2 | |||
| +60 | +150 | ppm | Vc= Vcc | |||
| Slope | Positive | |||||
| Linearity | -10 | +10 | % | |||
| Input Impedance | 100 | MΩ | ||||
| Modulation bandwith | 15 | KHz | ||||

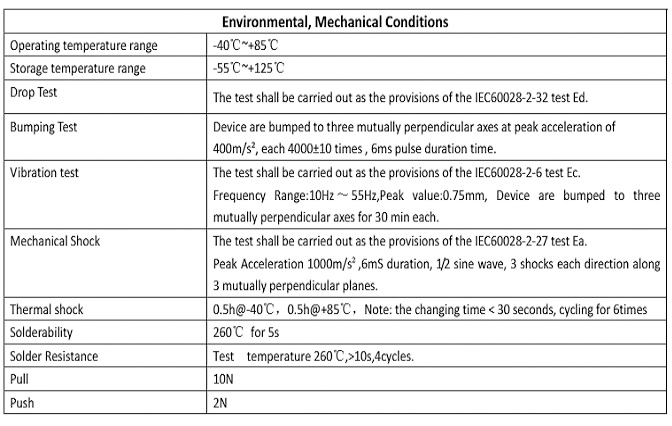

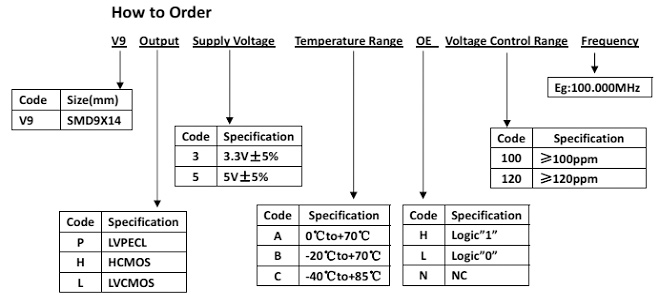

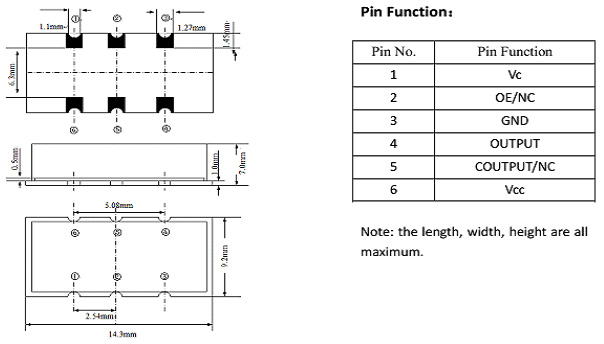

Dimensions:
