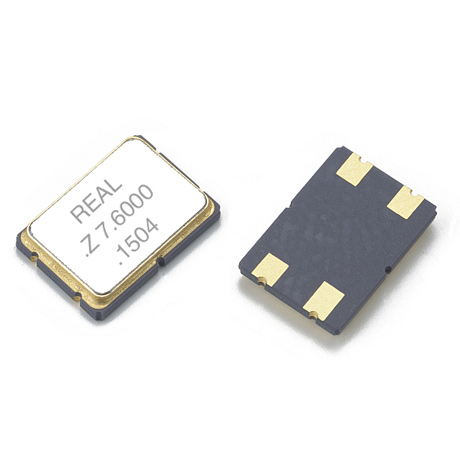

Product Name：VCXO 7050 SMD
- Product Category：
- Product Details：
Features:
． Low Power Consumption ． High Stability, Small profile ． Broad Voltage Control Range ． Mass production with well uniformity ． Custom build capability ． ISO9001:2008 & ISO 14001:2004 certificated ． ROHS compliant - E-MAIL:
-
Specification:
| Parameter | Min | Typ. | Max | Unit | Condition | Note | |||||
| Frequency Stability | |||||||||||
| Frequency | 70 | 160 | MHz | CMOS/HCMOS | |||||||
| 61.44 | 700.0 | MHz | LVPECL | ||||||||
| Initial Frequency Accuracy | -10 | +10 | ppm | Vc=1.65V/@25℃, | |||||||
| -15 | +15 | ||||||||||
| Supply Variation | -3 | +3 | ppm | Vcc±5%， @25℃ | |||||||
| Load Variation | -2 | +2 | ppm | CL±5%， @25℃ | |||||||
| Aging | First year | -3 | +3 | ppm | |||||||
| Temperature Stability | -25 | +25 | ppm | -40℃～+85@25℃ | |||||||
| Start up time | 20 | ms | |||||||||
| Supply Voltage/Current | |||||||||||
| Voltage Supply | 3.135 | 3.3 | 3.465 | V | |||||||
| Operating Current | 10 | mA | |||||||||
| 30 | mA | ||||||||||
| Output Characteristics | |||||||||||
| CMOS | Load | 15 | pF | ||||||||
| Output Level(VOL) |
10%Vcc | V | |||||||||
| Output Level(VOH) |
90%Vcc | V | |||||||||
| Duty Cycle | 45 | 55 | % | ||||||||
| Rise Time/ Fall Timel | 5 | ns | |||||||||
| LVPECL | Load | 50Ω /15p |
pF | ||||||||
| Output Level(VOL) |
1.65 | V | |||||||||
| Output Level(VOH) |
2.2 | V | |||||||||
| Duty Cycle | 45 | 55 | % | ||||||||
| Rise Time/ Fall Timel | 1 | ns | |||||||||
| Phase Noise | |||||||||||
| Phase Noise | -65 | dBc/Hz | @10Hz | For 100.00MHz operational frequency |
|||||||
| -95 | @100Hz | ||||||||||
| -120 | @1KHz | ||||||||||
| -140 | @10KHz | ||||||||||
| -145 | @100KHz | ||||||||||
| Voltage Control Characteristics | |||||||||||
| Control Voltage Range | 0 | 1.65 | 3.3 | V | |||||||
| 0 | 2.5 | 5 | V | ||||||||
| Frequency tuning range | -100 | -150 | ppm | Vc=0V | For 100.00MHz operational frequency |
||||||
| -10 | +10 | ppm | Vc=1.65V | ||||||||
| +100 | +150 | ppm | Vc=3.3V | ||||||||
| Slope | Positive | ||||||||||
| Linearity | -10 | +10 | % | ||||||||
| Input Impedance | 100 | MΩ | |||||||||

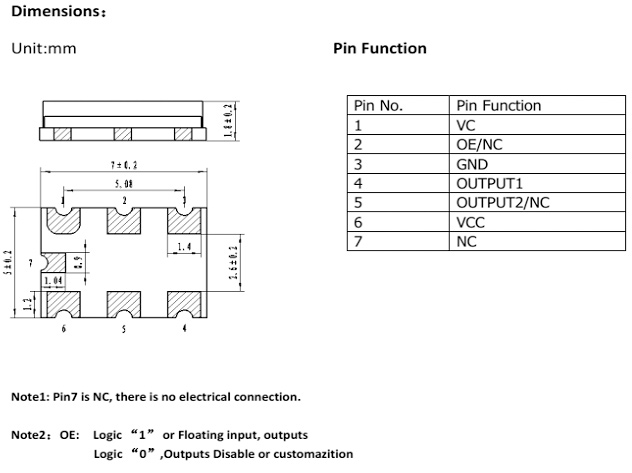

Dimensions:
